L20500: L20500 Skis

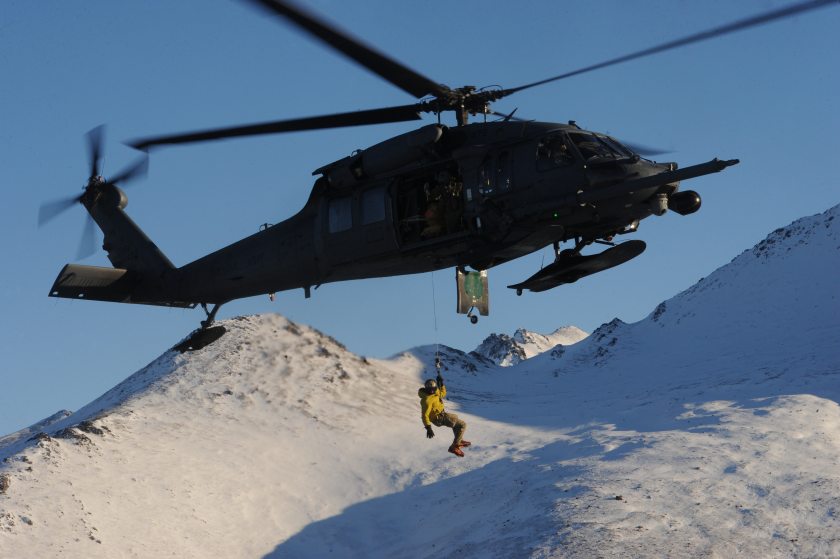

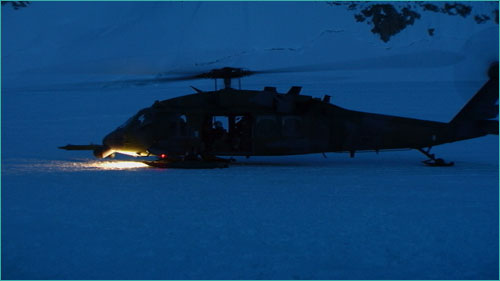

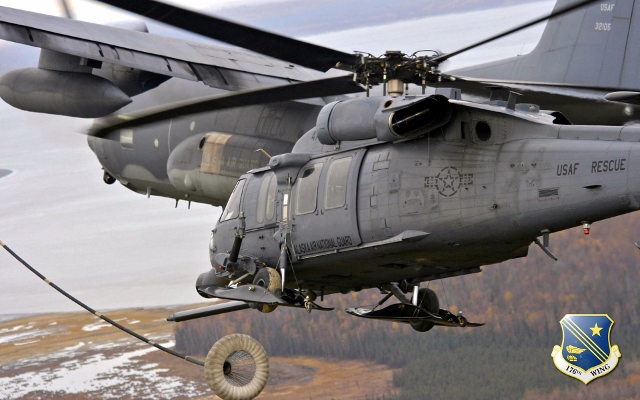

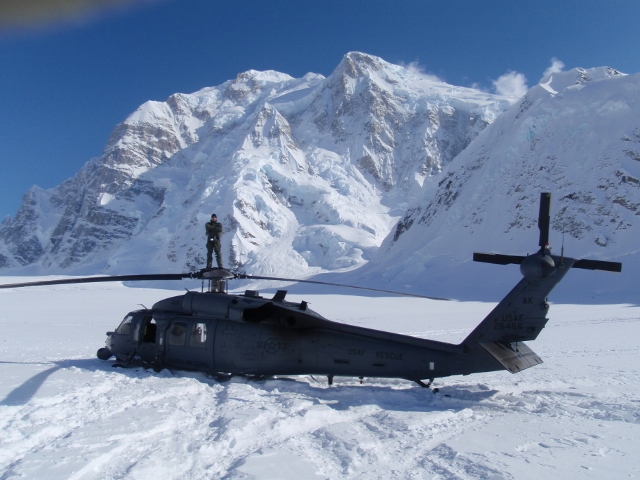

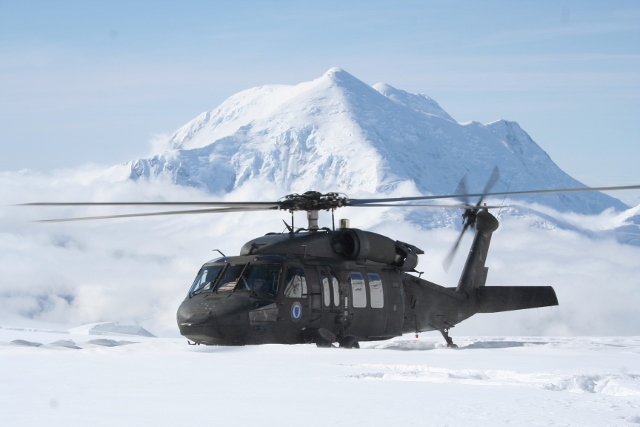

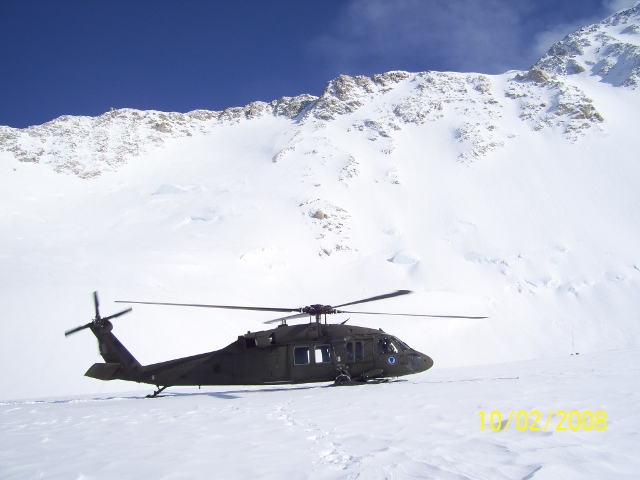

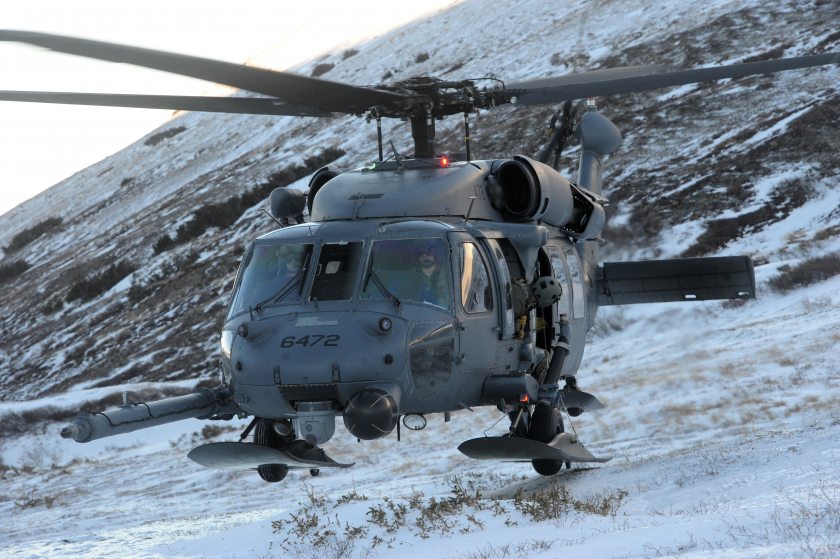

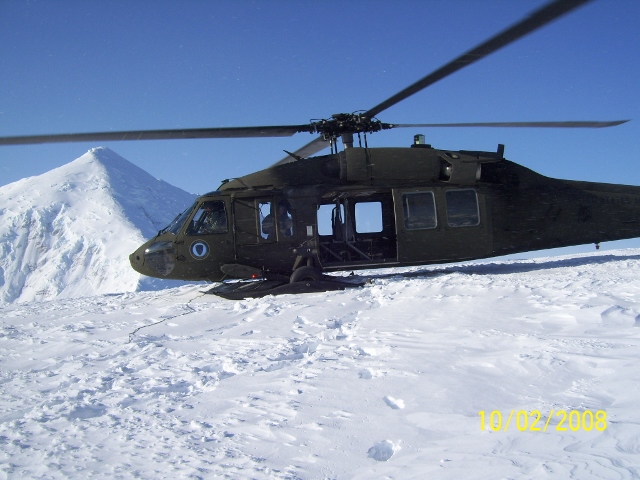

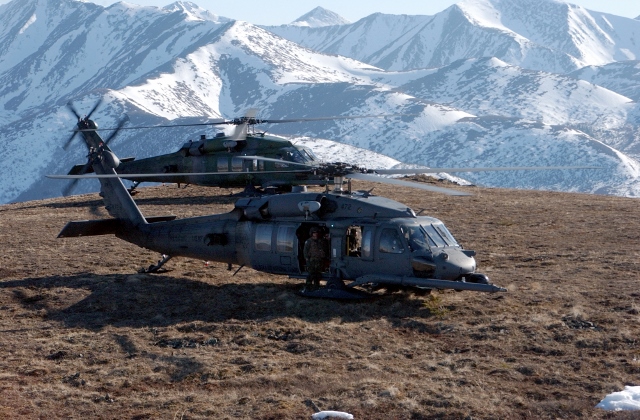

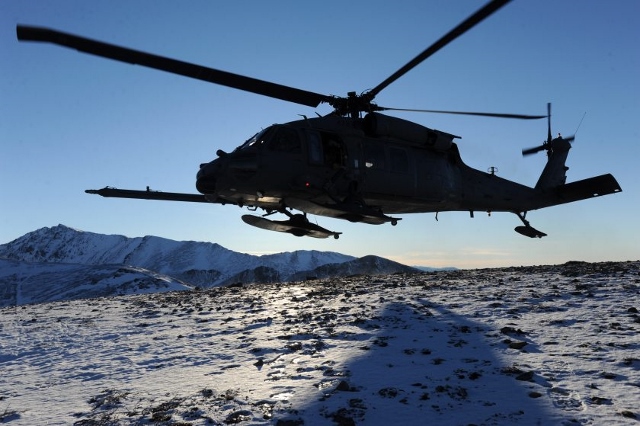

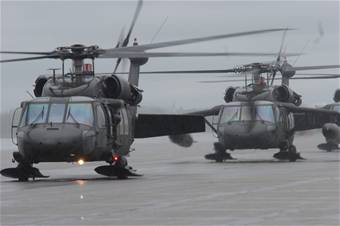

Airglas skis provide soft terrain (mud, sand, snow) support for military helicopters from the OH58 Kiowa's to the CH47 Chinook. Our light, rugged, and economical wheel penetration skis allow operations from both hard surface and unprepared terrain. Our skid skis provide solutions for soft terrain and can be configured to allow operation of hoists and ground handling equipment without removal of the ski
Specs:
MAIN SKIS: P/N L20500-1,-2,-1R,-2R (R= Rescue Hinged)
Dimensions: 115" x 37.5"
Surface Area: 3,821²"
Weight of each Ski:178 lbs. and 216 lbs for Hinged Skis
Area Distribution:60% Ahead of Axle
C.G. of ski: 6.0" Fwd. of Axle C.L., (3.8” for Hinged Skis)
TAIL SKI P/N L20500-3
Dimensions: 48" x 28.2"
Surface Area: 1,080² "
Weight of Ski:50 lbs.
Area Distribution: 60% Ahead of Axle
C.G. of Ski: 4.2” Fwd. of Axle C.L.
Includes:
Skis & Attaching Hardware
