LT32 Belly Tank

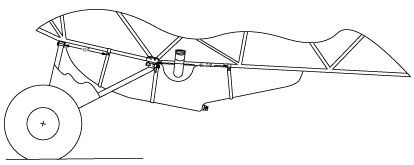

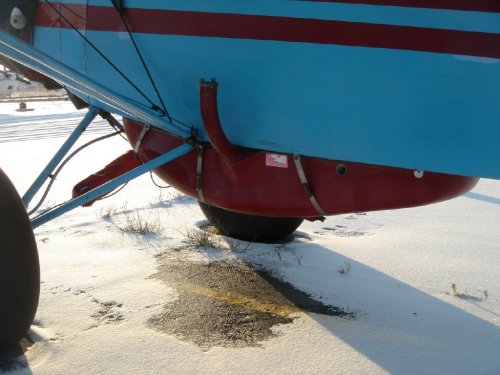

The LT-32 is an external fuel tank that is slightly smaller than the other Airglas cargo pods providing the pilot with an additional 32 gallons of fuel. Fuel is transferred into the left tank as needed by a 12 volt electric pump mounted under the rear seat. The fuel transfer is manually controlled by a switch mounted on the instrument panel.
Specifications
Fuel Capacity:32 gallons/31.5 useable
Length: 54 in
Width: 25 in
Height: 11 in
Weight: 32 pounds
Includes
Pump Kit, STC: PA18, and Stainless Steel Attachment Straps
Compatible Aircraft
- PA-18-125
- PA-18-135
- PA-18-150
- PA-18A
- PA-18A-135
- PA-18A-150
