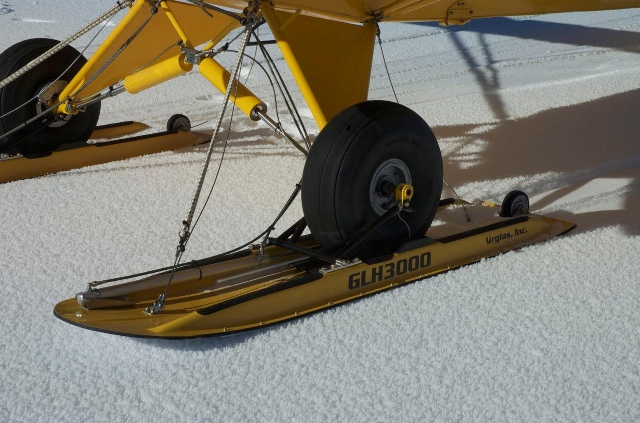

The GLH3000 is the latest ski developed by Airglas for the Sub 3000 lb airplane market. It uses composite/carbon fiber construction to make a hydraulic wheel ski that has excellent performance both on the snow and on hard surfaces. The ski provides a larger surface area on the snow than its competitors, yet is lighter and less expensive.
STC'd for PA-18, PA-12, CC-18,Dakota Super 18 and Aviat Husky.
Specifications
Length: 74 in
Width: 20 in
Weight: 90 lbs per pair for Piper & Husky.
Surface Area: 1435 sq in
Includes
All attaching hardware, rigging, & STC.
NOTE: Piper requires
3″ extended gear and 8.50 x 6 tires req’d
(Husky requires Atlee Dodge Landing gear.
NOTE: Landing gear will require modification, to install skis. All weld-on modifications are performed by Airglas and is included in the price. Hydraulic Pump is not included in the price. Pump Kits are sold separately.
Compatible Aircraft
- Aviat A-1
- Aviat A-1A
- Aviat A-1B
- Aviat A-1C-180
- Aviat A-1C-200
- CC-18
- PA-12
- PA-18-125
- PA-18-135
- PA-18-150
- PA-18A-135
- PA-18A-150
- Super 18 (S-18-180)
